JL Audio Home Audio IWSv2-SYS-213 Dual 13.5" In-Wall v2 Powered Subwoofer System

Get an extra 5%
when you sign up for our emails!

Product Descriptions

JL Audio Home Audio IWSv2-SYS-213 Dual 13.5" In-Wall v2 Powered Subwoofer System

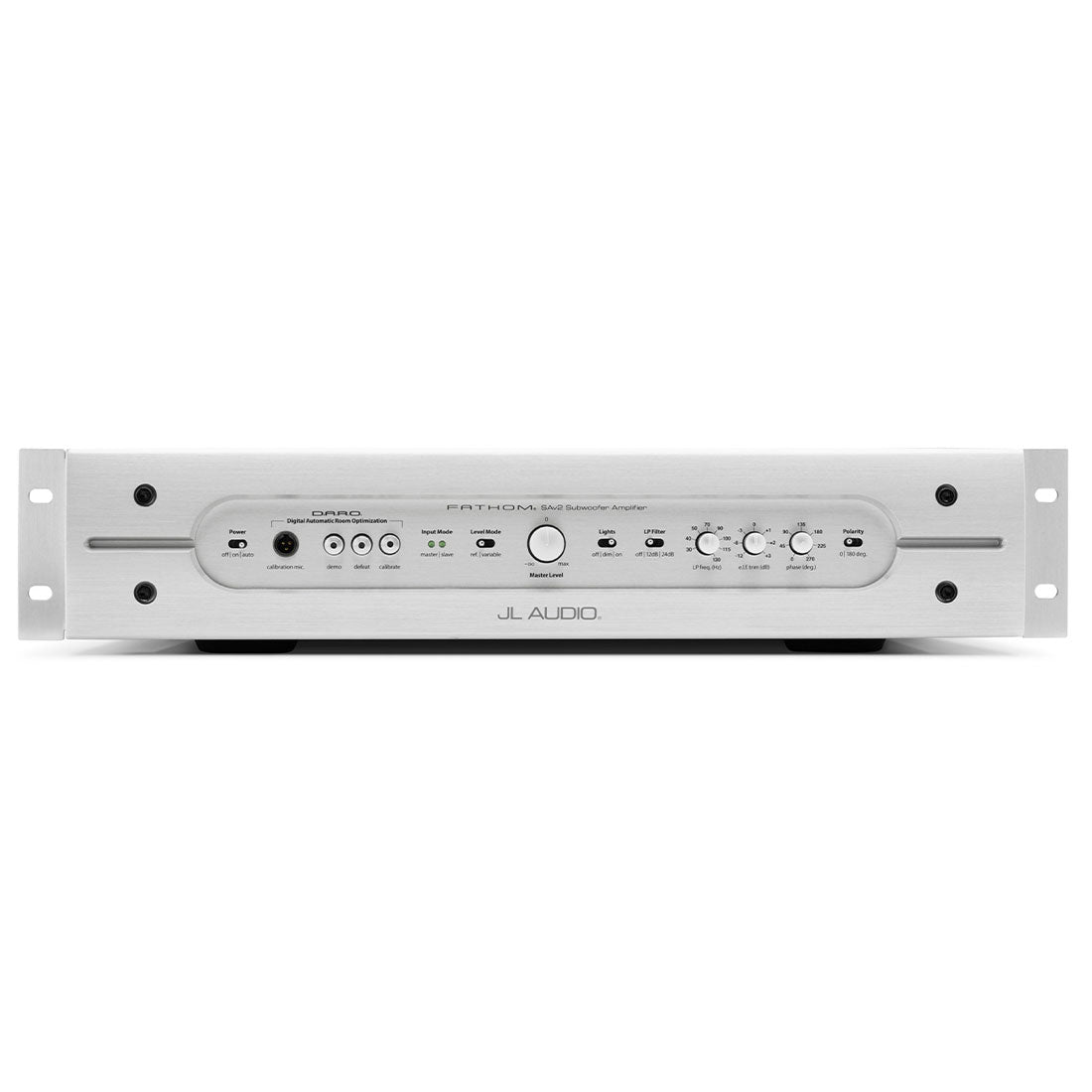

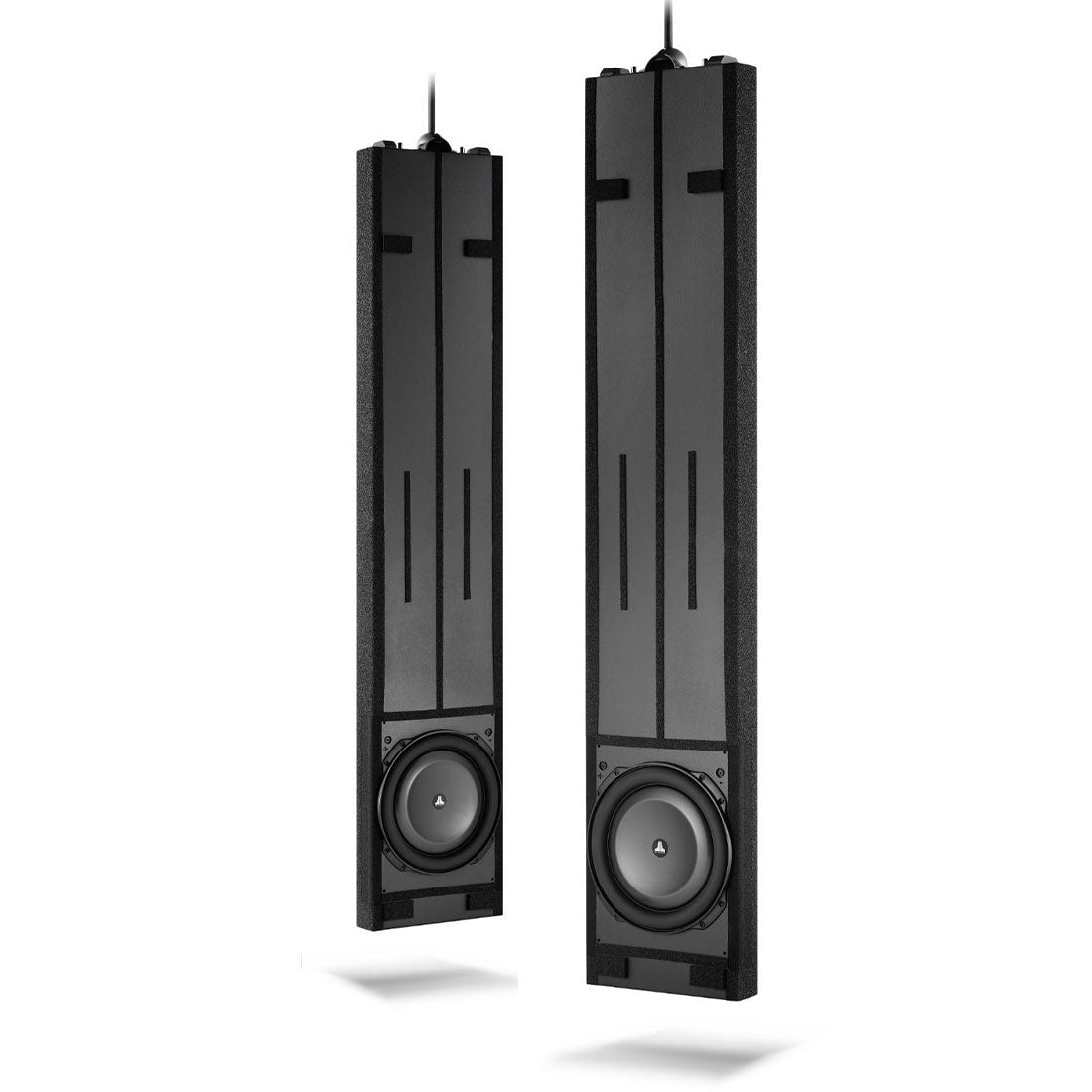

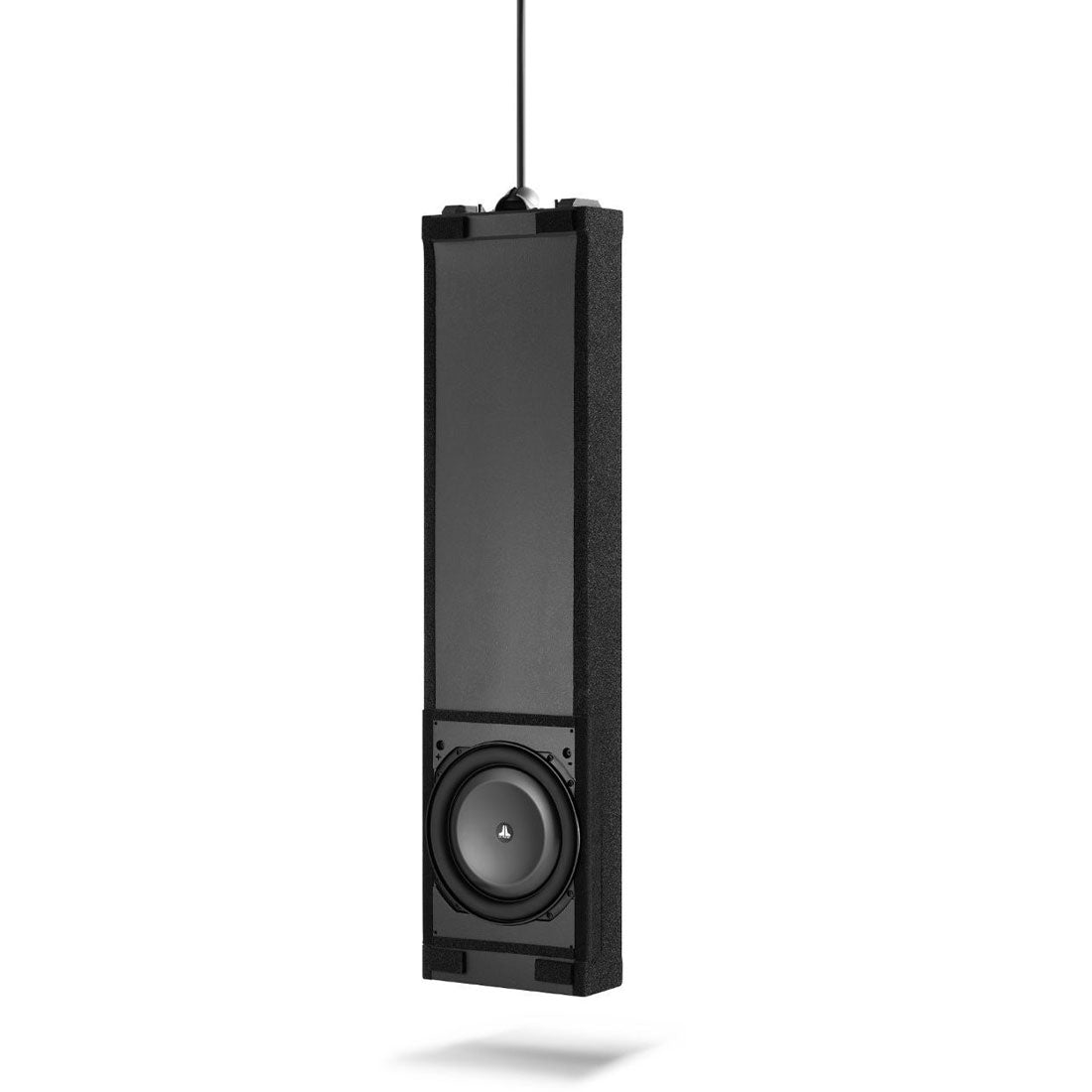

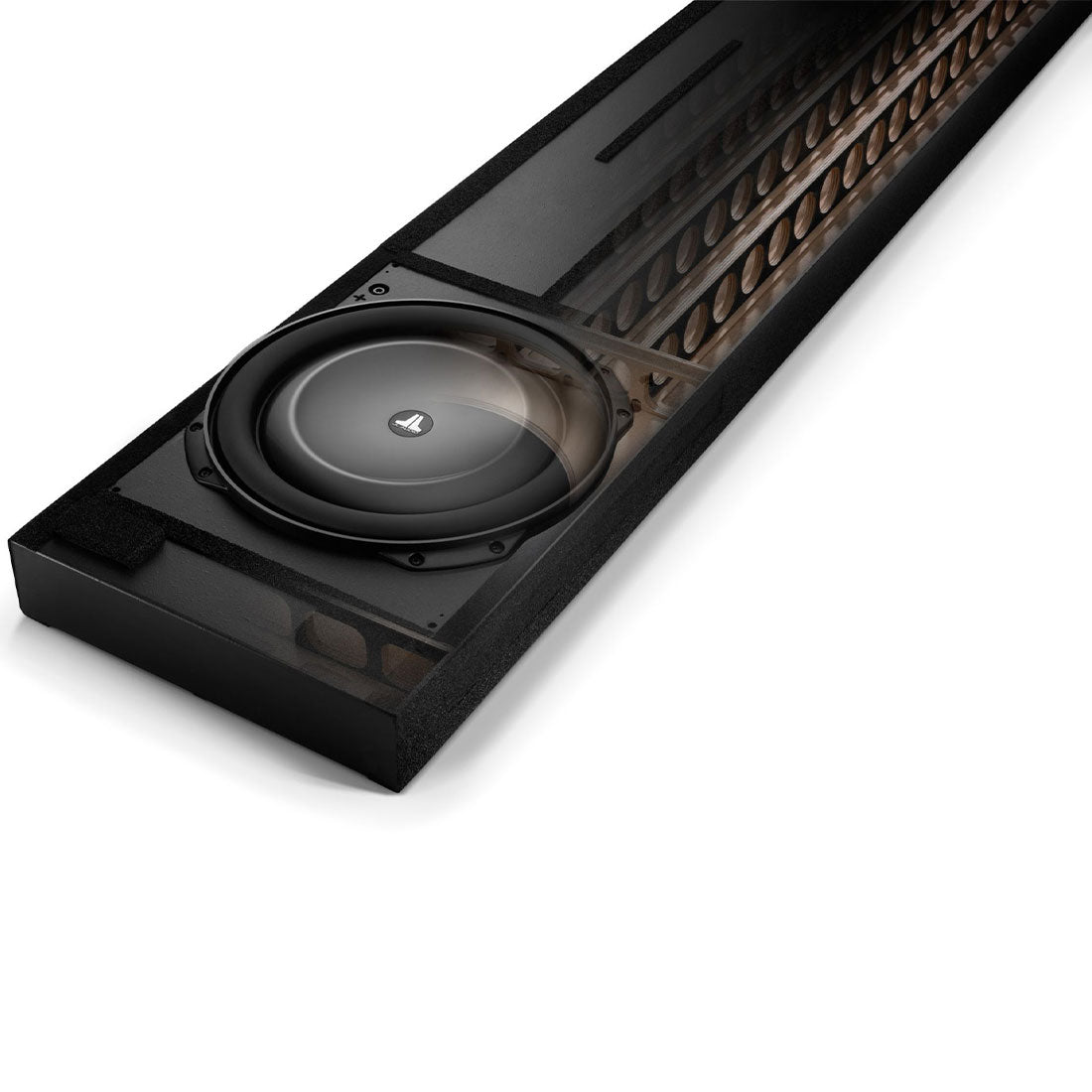

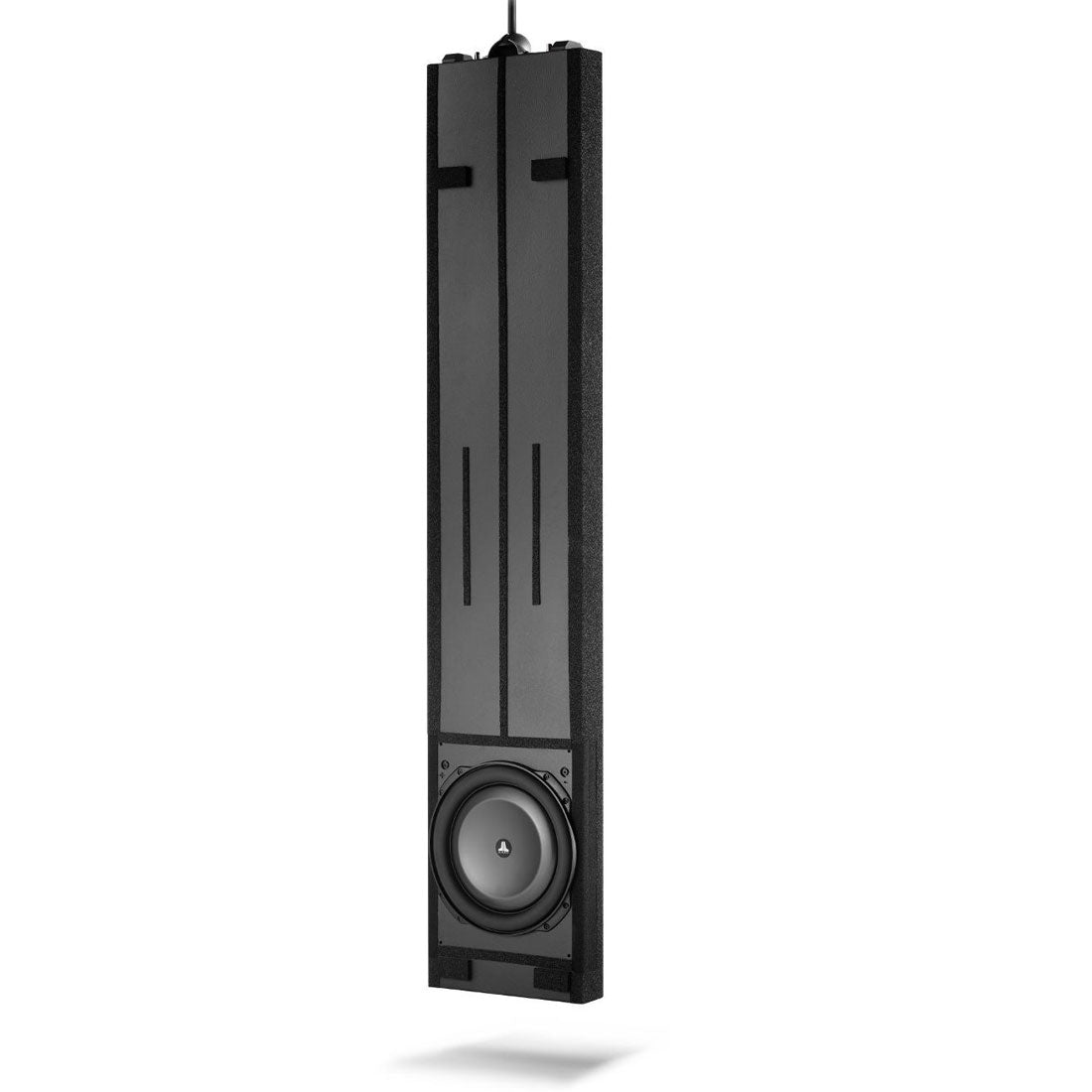

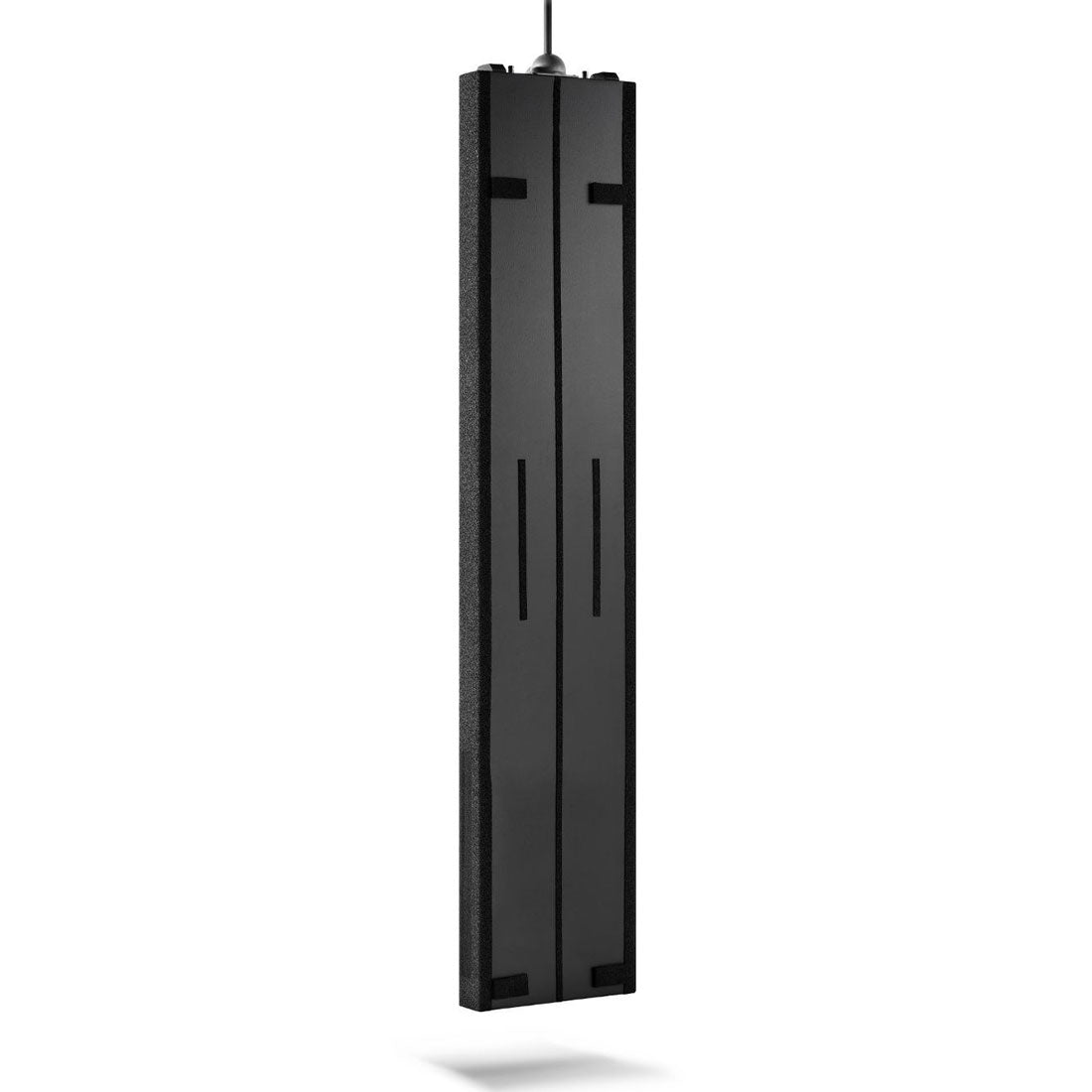

In-Wall Subwoofer System with Dual 13.5-inch Subwoofers, 2000 watts The same minds that engineered JL Audio’s reference-grade Fathom and Gotham powered subwoofers have created an amazing in-wall subwoofer solution, centered on a pair of innovative, thin-line drivers with groundbreaking technologies. Housing these exotic drivers are two critically engineered enclosures with a unique floating mount design to minimize wall excitation. The enclosures feature extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in the system. The IWSv2-SYS-213 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 2 kW of clean power, and armed with serious processing features, including our latest Digital Automatic Room Optimization system. There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom.

IWSv2-SYS-213 Features

  • The IWSv2-SYS-213 is available to fit a variety of 2" x 4" and 2" x 6" wall studs.
  • Enclosure Finish: Flat Black (hidden from view when installed)

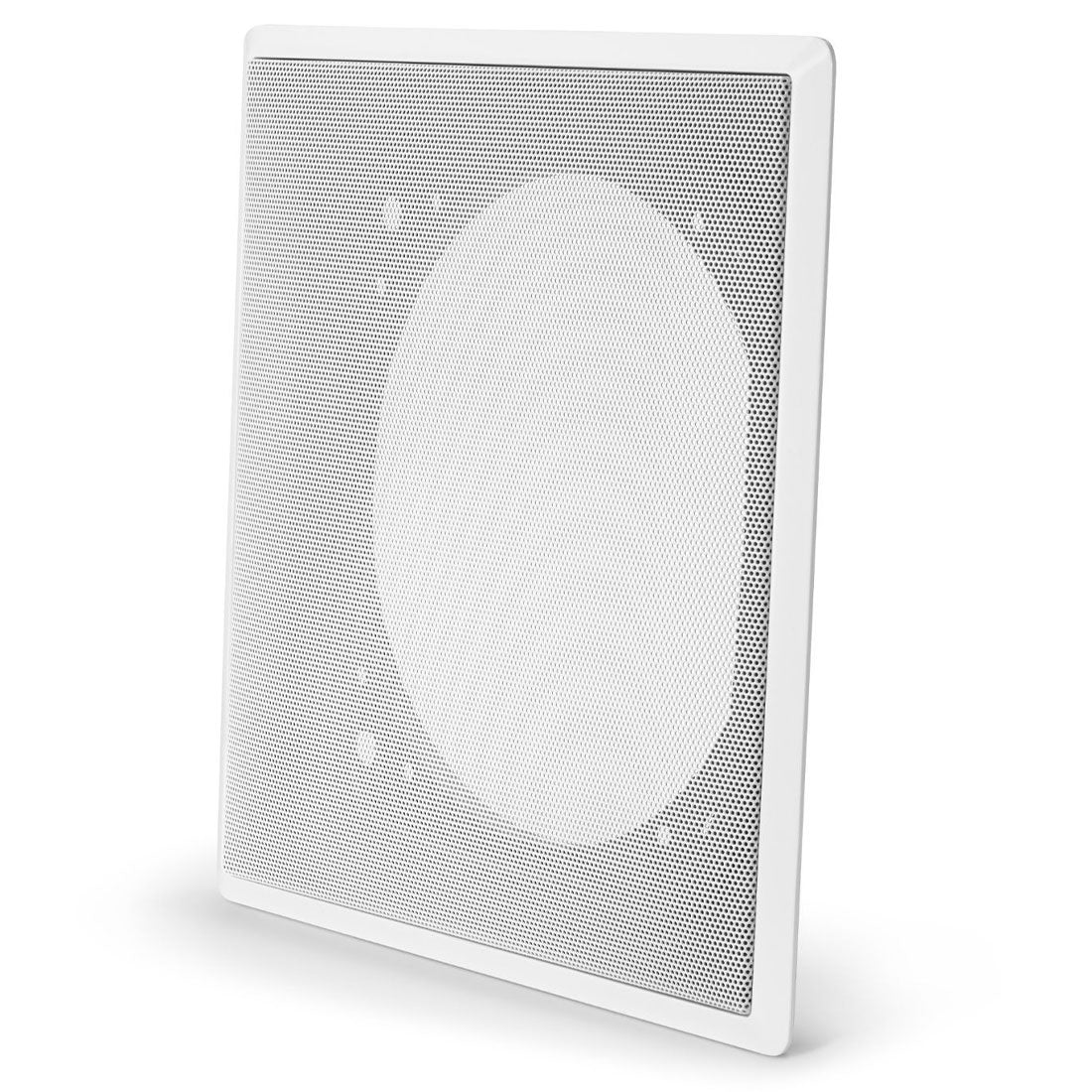

  • Grille finish: Primer White (paintable)
  • Enclosure Construction: CNC-Cut Birch Plywood

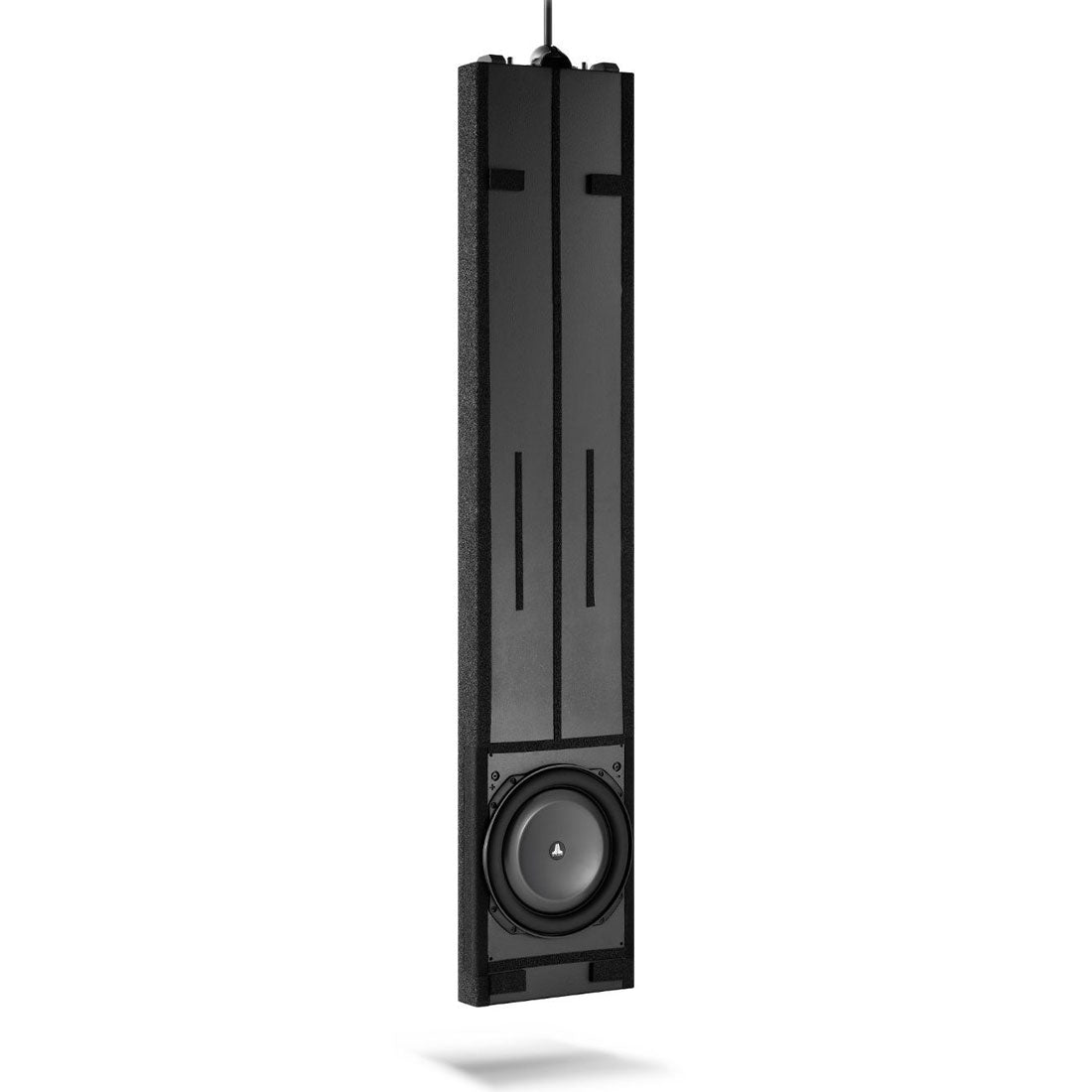

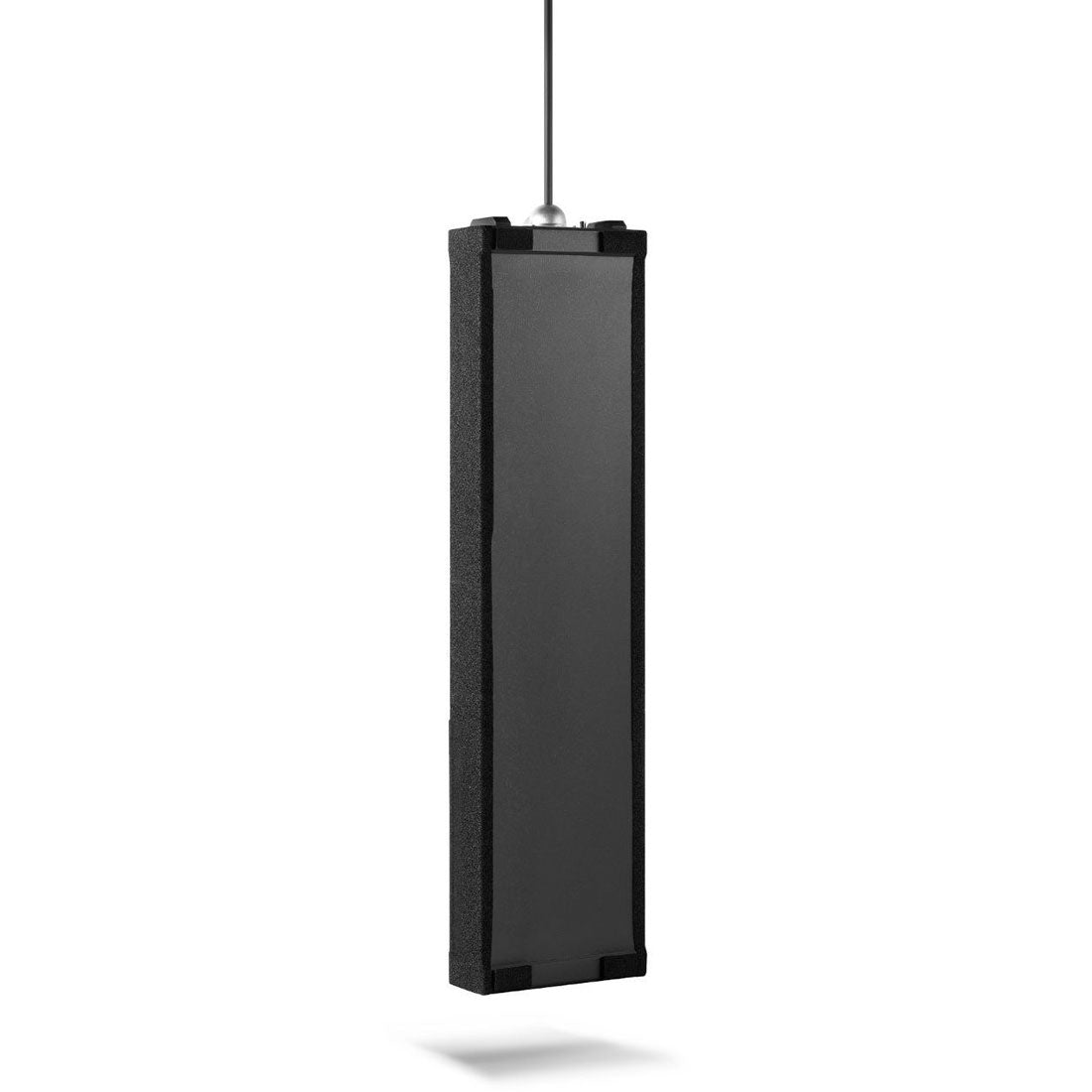

2 x 4-inch Wall Stud Enclosure Physical Specifications

Wall Cavity Width (W) Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H) Minimum: 93.625 in / 2,378 mm
Width (W) 13.75 in / 349 mm
Height (H) 70 in / 1,778 mm
Depth (D) 2.94 in / 75 mm
Note: Enclosure dimensions do not include vibration-dampening padding.

2 x 6-inch Wall Stud Enclosure Physical Specifications

Wall Cavity Width (W) Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H) 93.625 in / 2,378 mm
Width (W) 13.75 in / 349 mm
Height (H) 55 in / 1,397 mm
Depth (D) 4.70 in / 119 mm
Note: Enclosure dimensions do not include vibration-dampening padding.

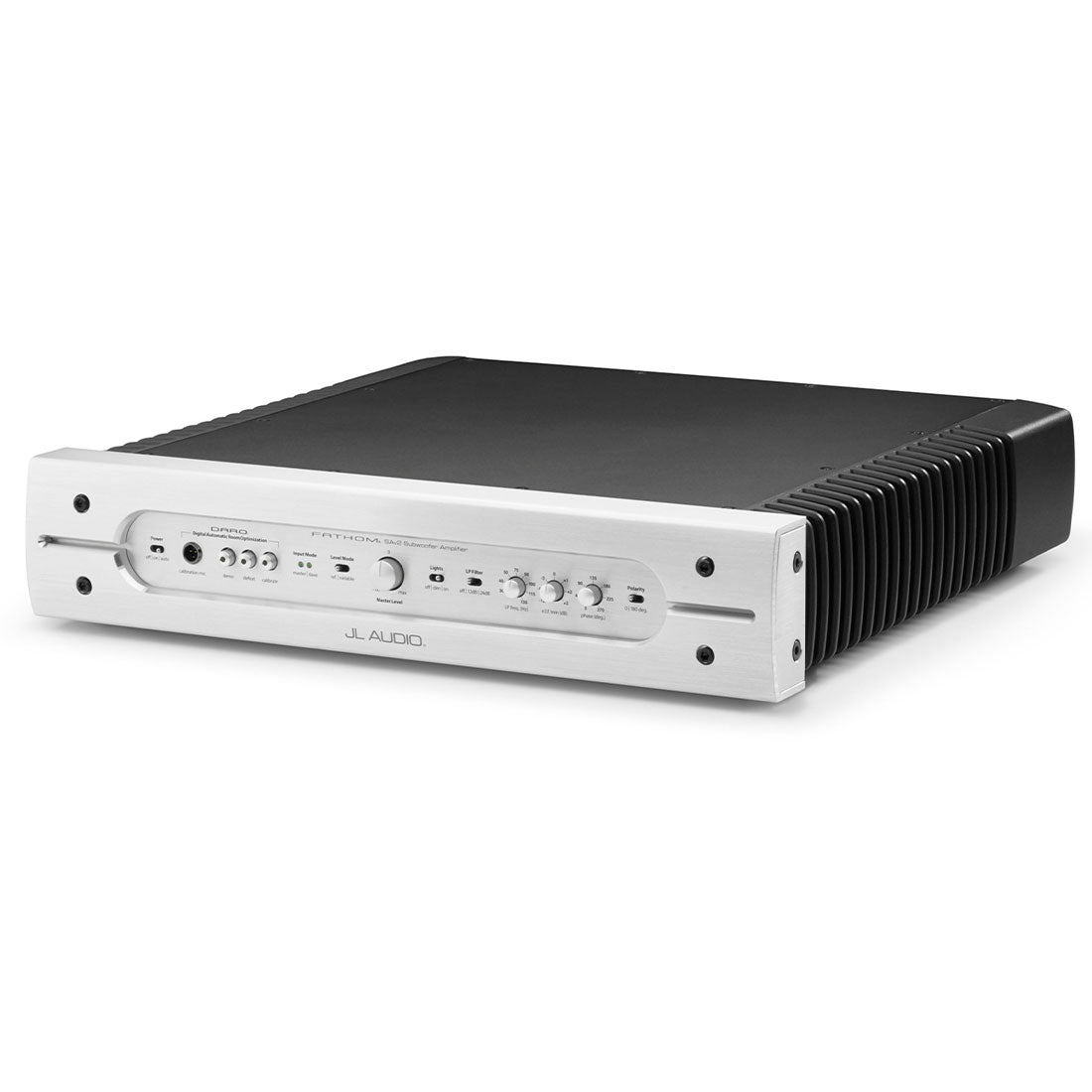

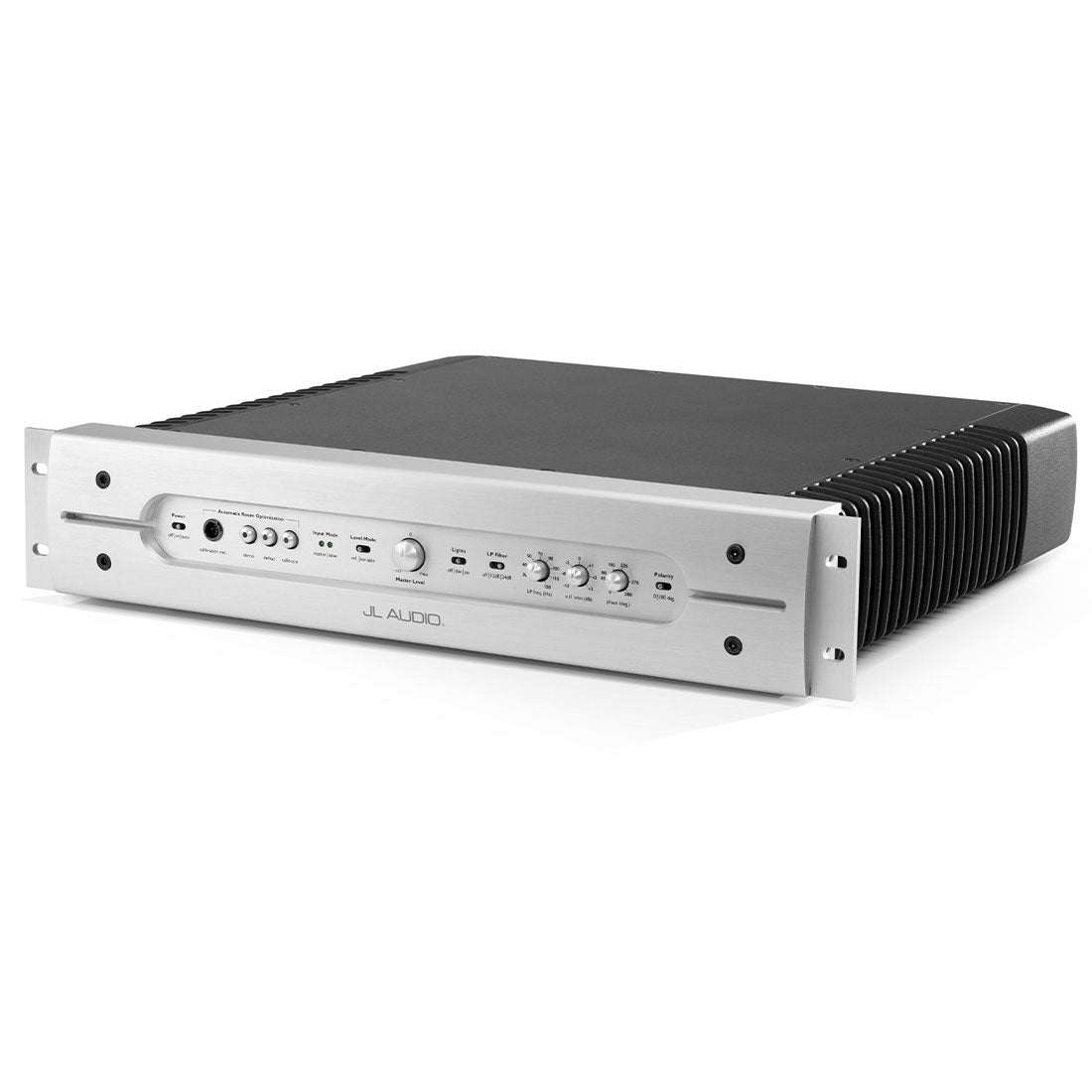

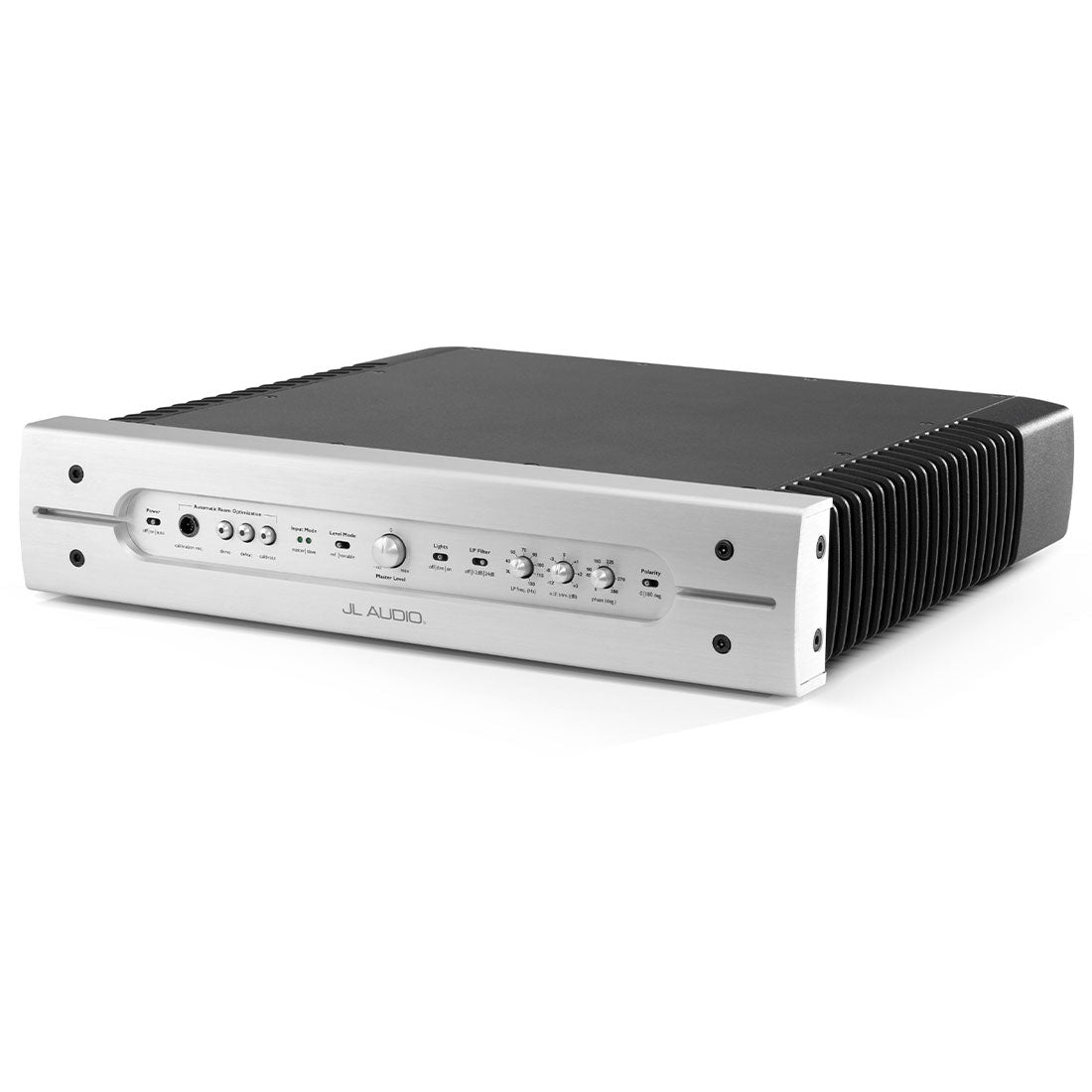

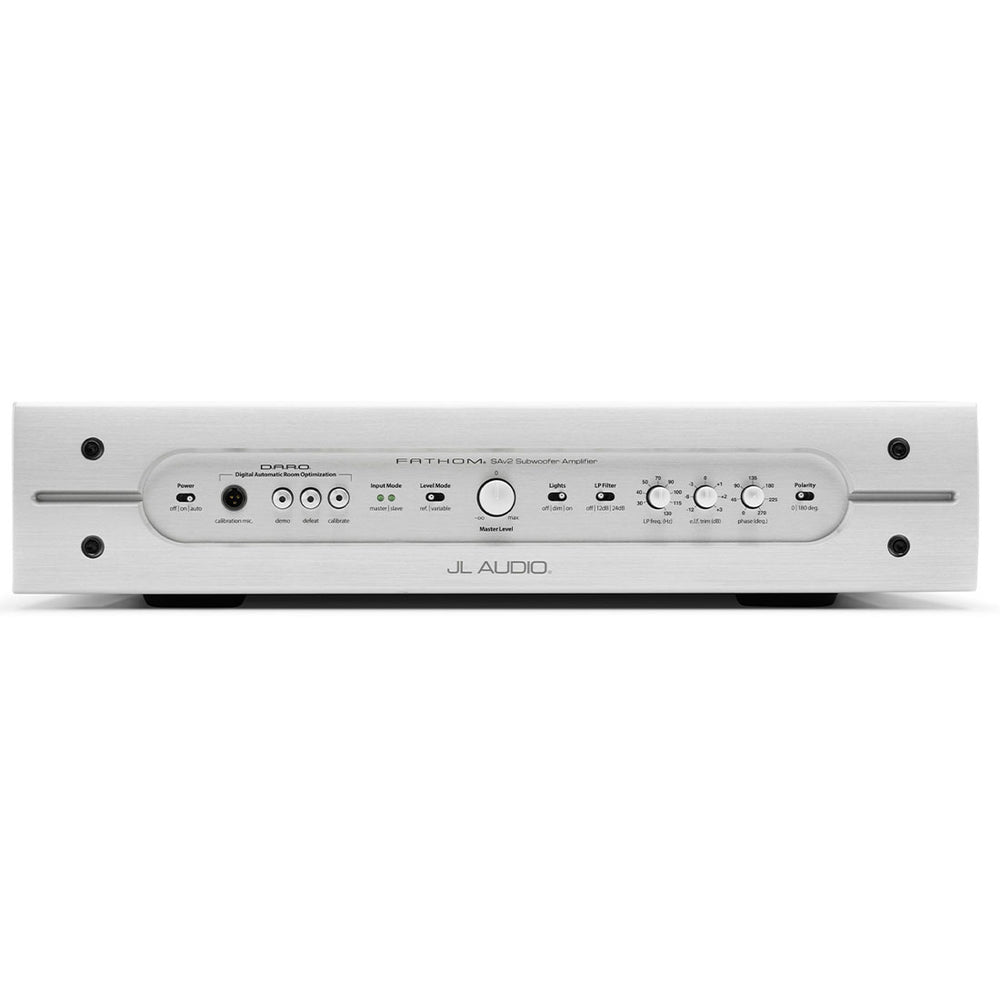

Amplifier Physical Specifications

Width (W) 17.4 in / 442 mm
Height (H) 3.5 in / 89 mm
Depth (D) 17.9 in / 455 mm
Net Weight 43 lb / 19.5 kg
Note: Amplifier Height Dimensions do not include feet.

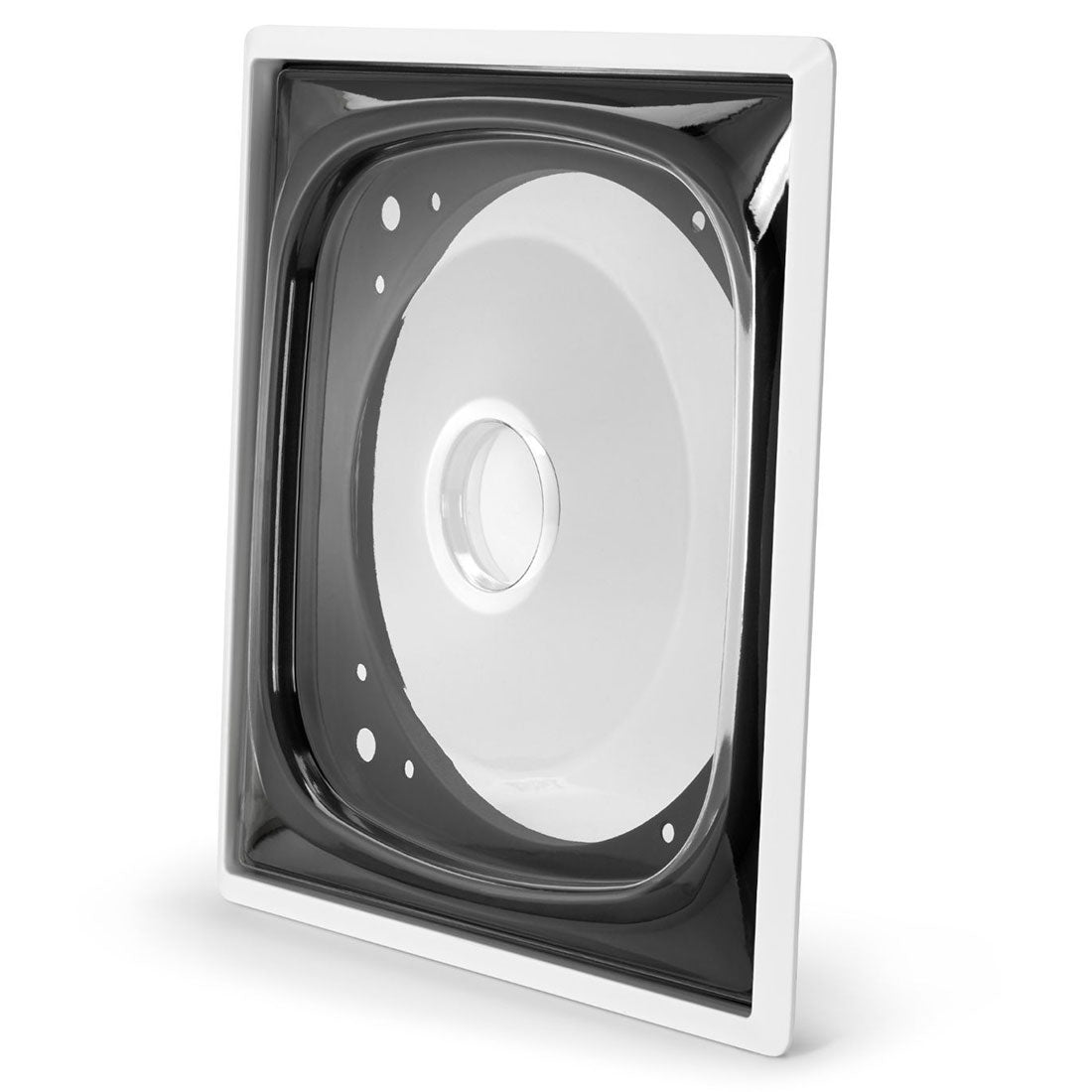

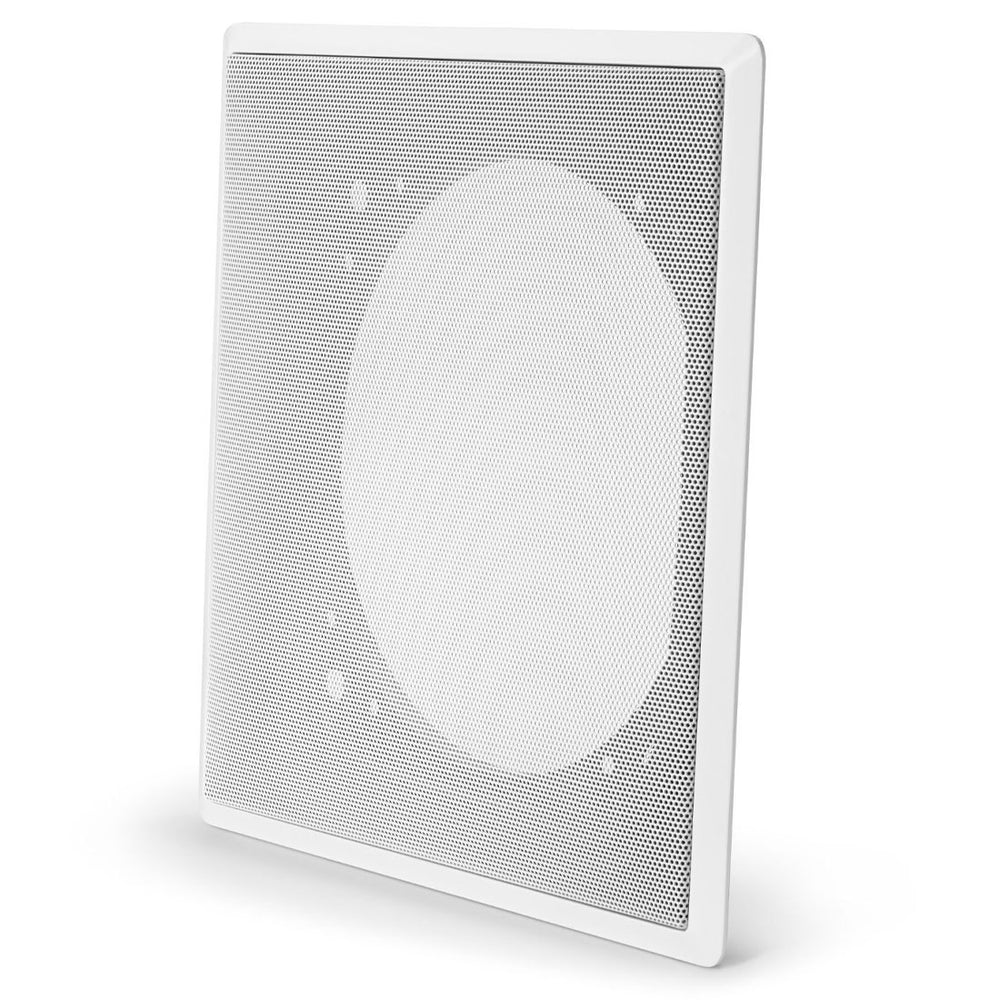

Grille Height (H) 17.64 in / 448 mm
Grille Width (W) 17.14 in / 435 mm
Wall Opening Height (H) 16.50 in / 419 mm
Wall Opening Width (W) 16.00 in / 406 mm

Features & Specs

– Enclosure Type: Sealed
– Enclosure Finish: Black Texture-Coated
– Frequency Response: 26 Hz – 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
– Effective Piston Area: 196.51 sq in / 0.1268 sq m
– Effective Displacement: 294.6 cu in / 4.82 L
– Amplifier Power: 2000 W RMS short-term
– Power Mode(s): Off, On or Automatic (Signal-Sensing)
– Light Modes: Off, On or Dim

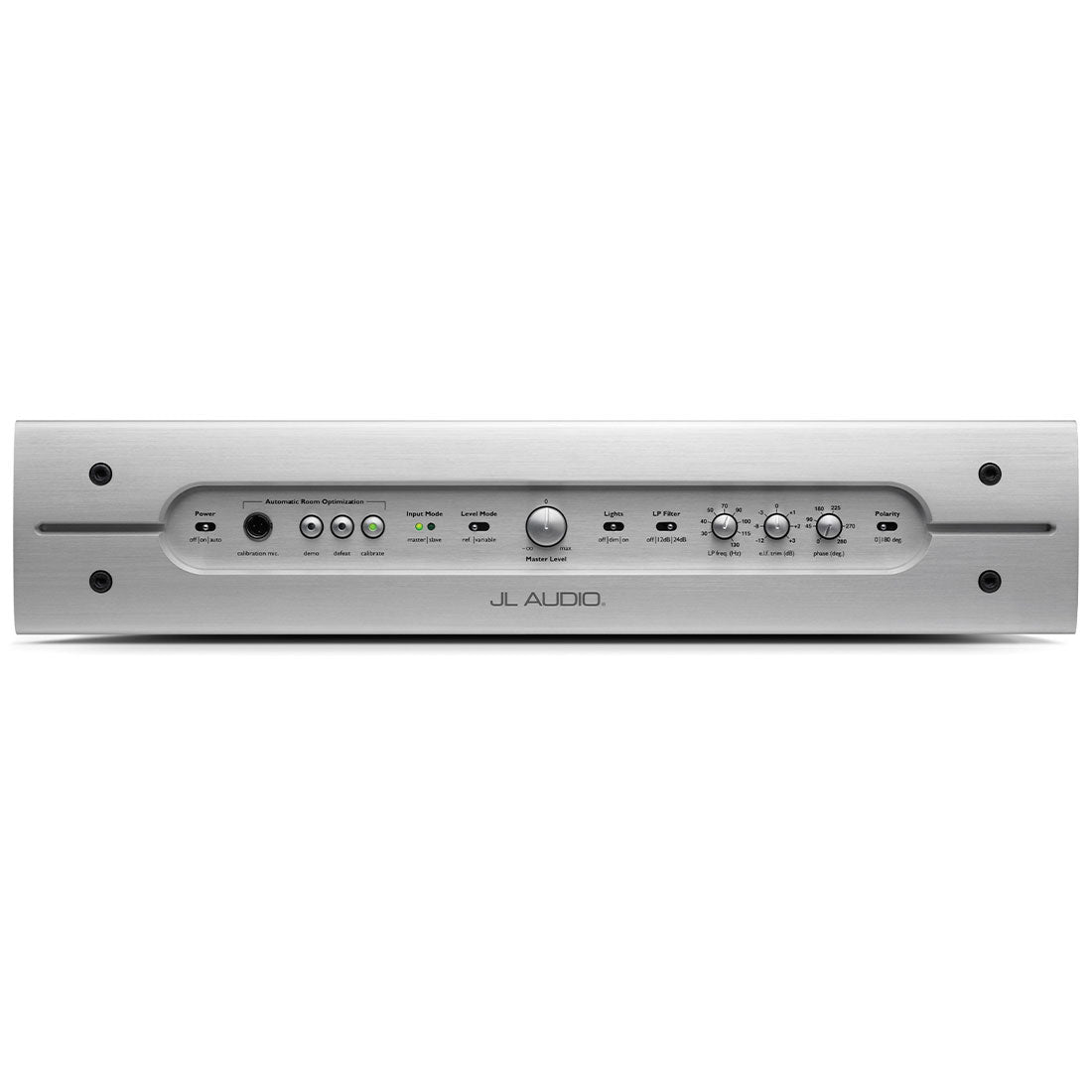

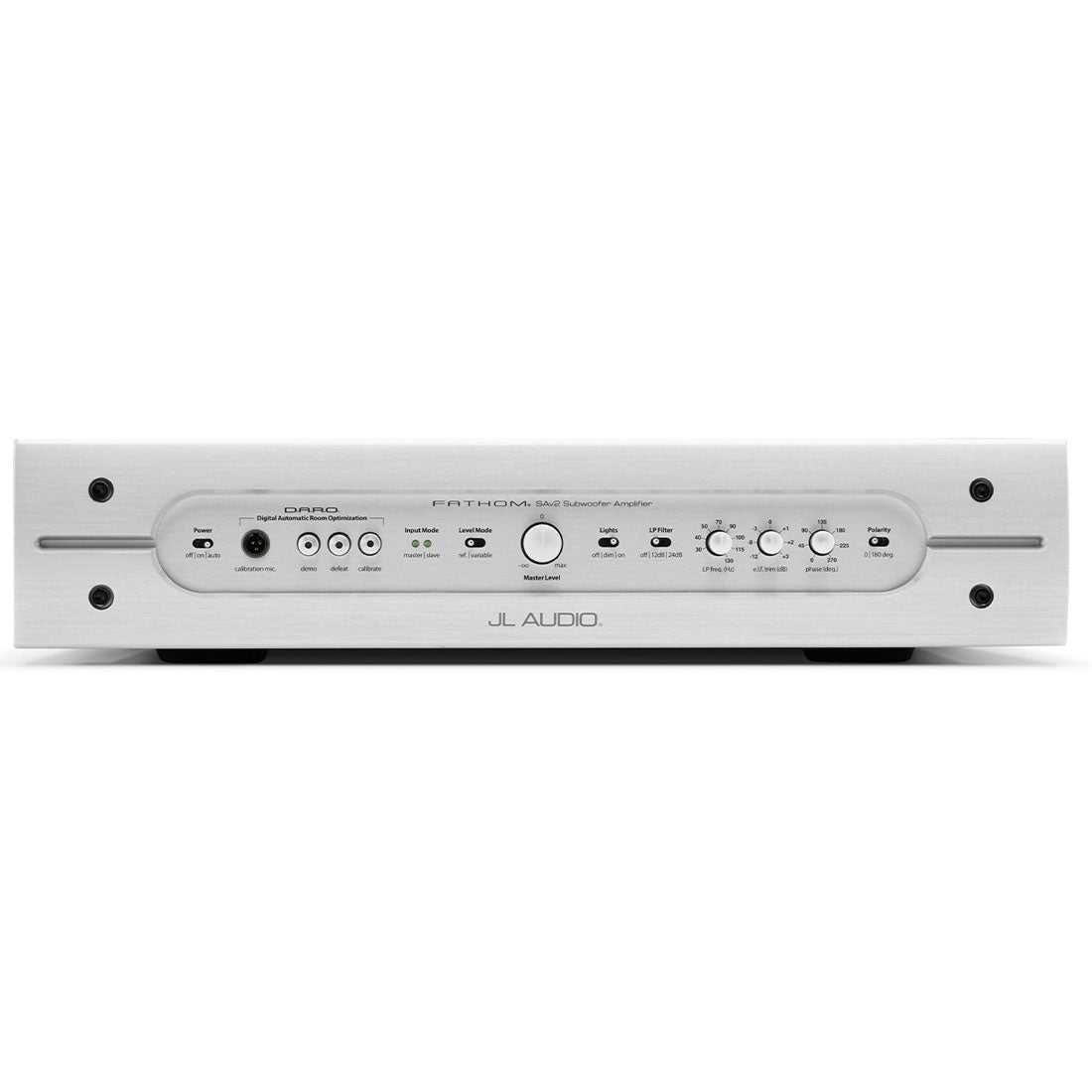

Signal Processing

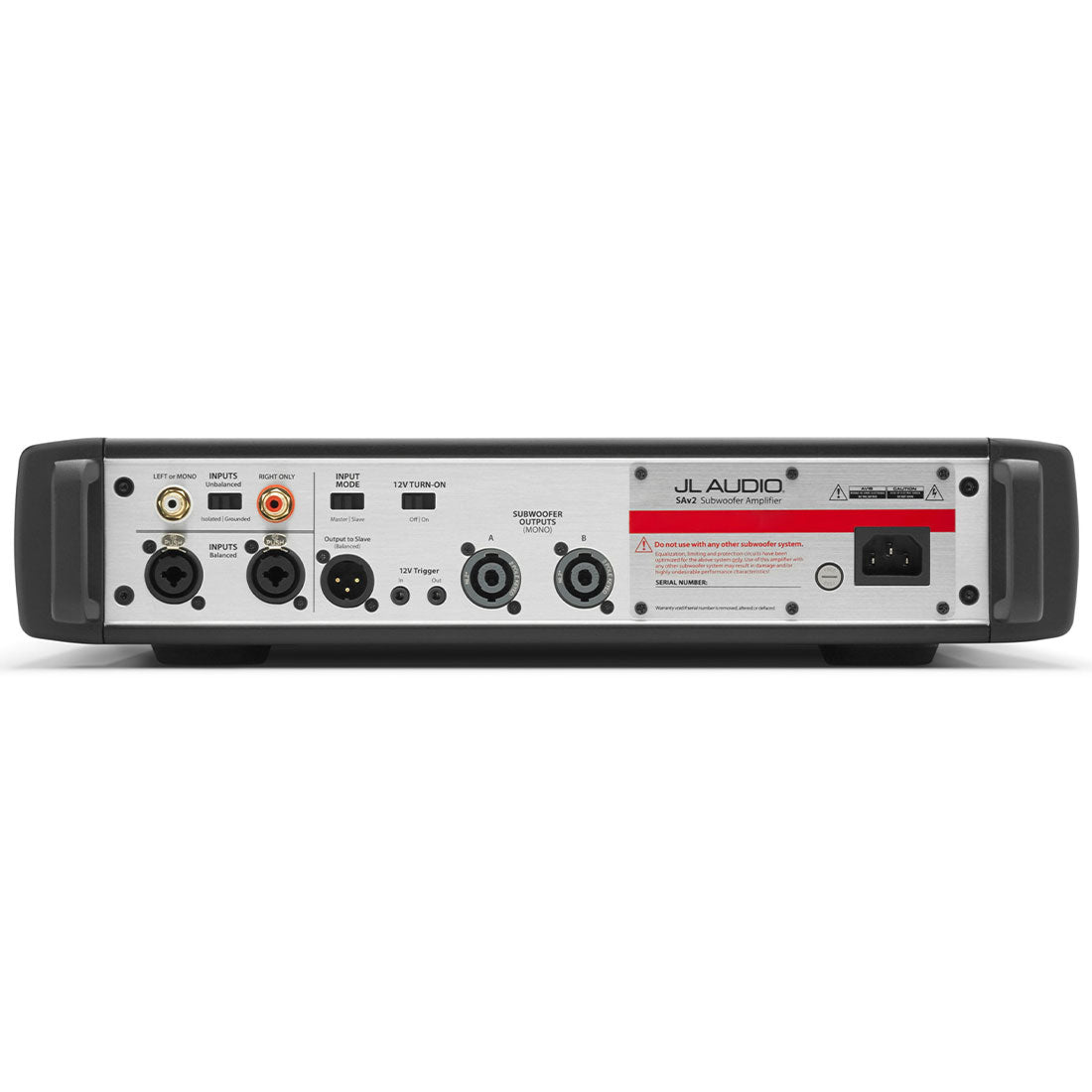

– Unbalanced Inputs: Stereo or Mono (two RCA jacks)
– Balanced Inputs: Stereo or Mono (two female XLR jacks)
– Speaker/High-Level Inputs: N/A
– Input Grounding: Isolated or Grounded
– Input Modes: Master or Slave
– Level Control: Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
– Filter Mode(s): Low-Pass
– Filter Slope(s): 12/24 dB/octave
– Filter Frequency Range: 30 Hz – 130 Hz
– Filter Defeat Function: Yes
– Polarity: 0 or 180 degrees
– Phase: Variable, 0- 270 degrees, referenced to 80 Hz
– Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 23 Hz
– Line Outputs: N/A
– Output to Slave: Balanced (one male XLR jack)
– Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone

2 x 4-inch Wall Stud Enclosure Dimensions
– Wall Cavity Width: Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
– Wall Cavity Height: Minimum: 93.625 in / 2,378 mm
– Width: 13.75 in / 349 mm
– Height: 70 in / 1,778 mm
– Depth: 2.94 in / 75 mm
– Note: Enclosure dimensions do not include vibration-dampening padding.

2 x 6-inch Wall Stud Enclosure Dimensions
– Wall Cavity Width: Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
– Wall Cavity Height: 93.625 in / 2,378 mm
– Width: 13.75 in / 349 mm
– Height: 55 in / 1,397 mm
– Depth: 4.70 in / 119 mm
– Note: Enclosure dimensions do not include vibration-dampening padding.

Amplifier Dimensions
– Width: 17.4 in / 442 mm
– Height: 3.5 in / 89 mm
– Depth: 17.9 in / 455 mm
– Net Weight: 43 lb / 19.5 kg
– Note: Amplifier Height Dimensions do not include feet.

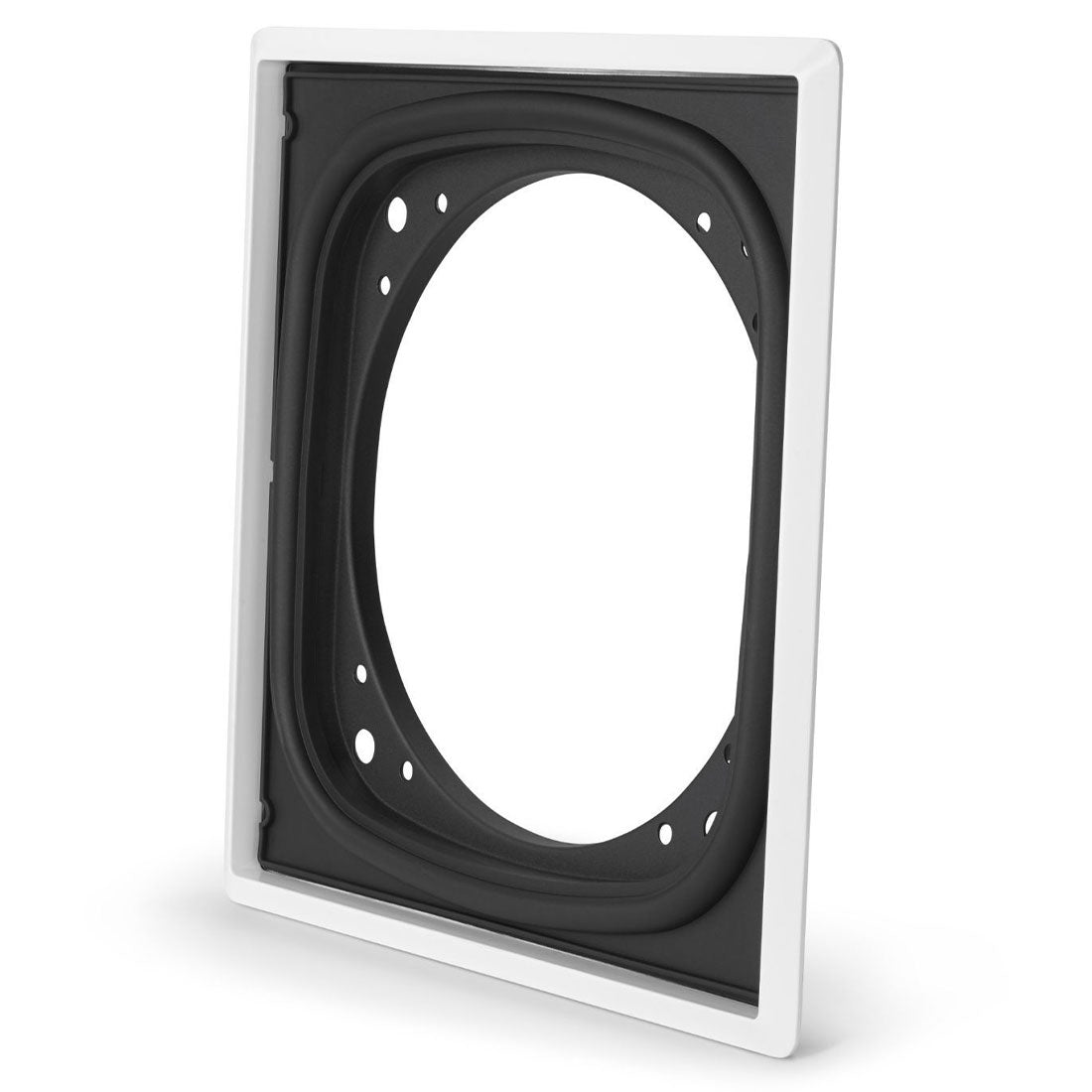

Grille Dimensions
– Grille Height: 17.64 in / 448 mm
– Grille Width: 17.14 in / 435 mm
– Wall Opening Height: 16.50 in / 419 mm
– Wall Opening Width: 16.00 in / 406 mm

Documents

Warranty

JL Audio Canada Limited 3 Year Warranty
SKU: IWSv2-SYS-213
$13,000.00
