JL Audio C1-100CT 1" Component Tweeters - Pair - #99049

JL Audio C1-100ct 1" Aluminum Dome Component Car Audio Tweeters #99049 - Pair

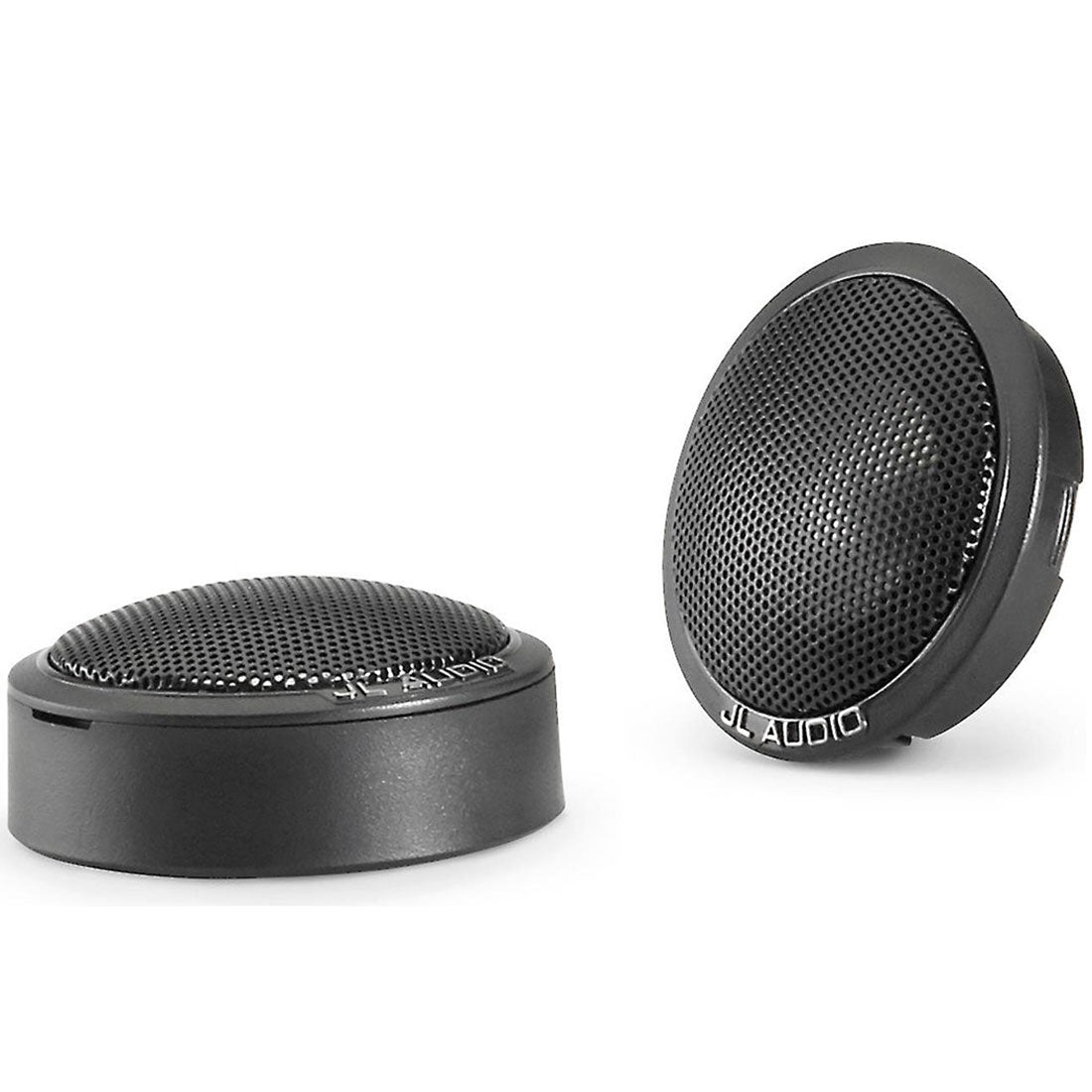

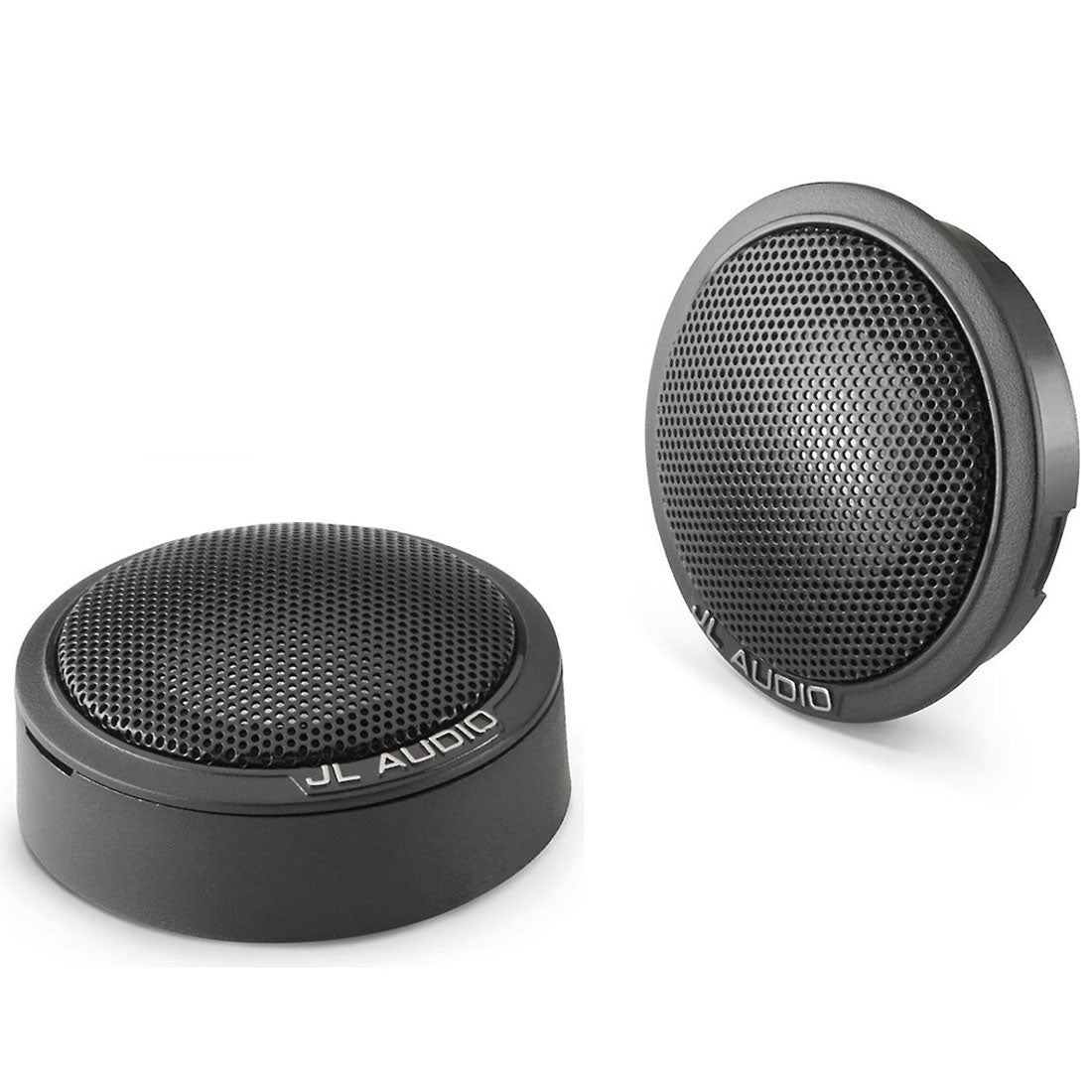

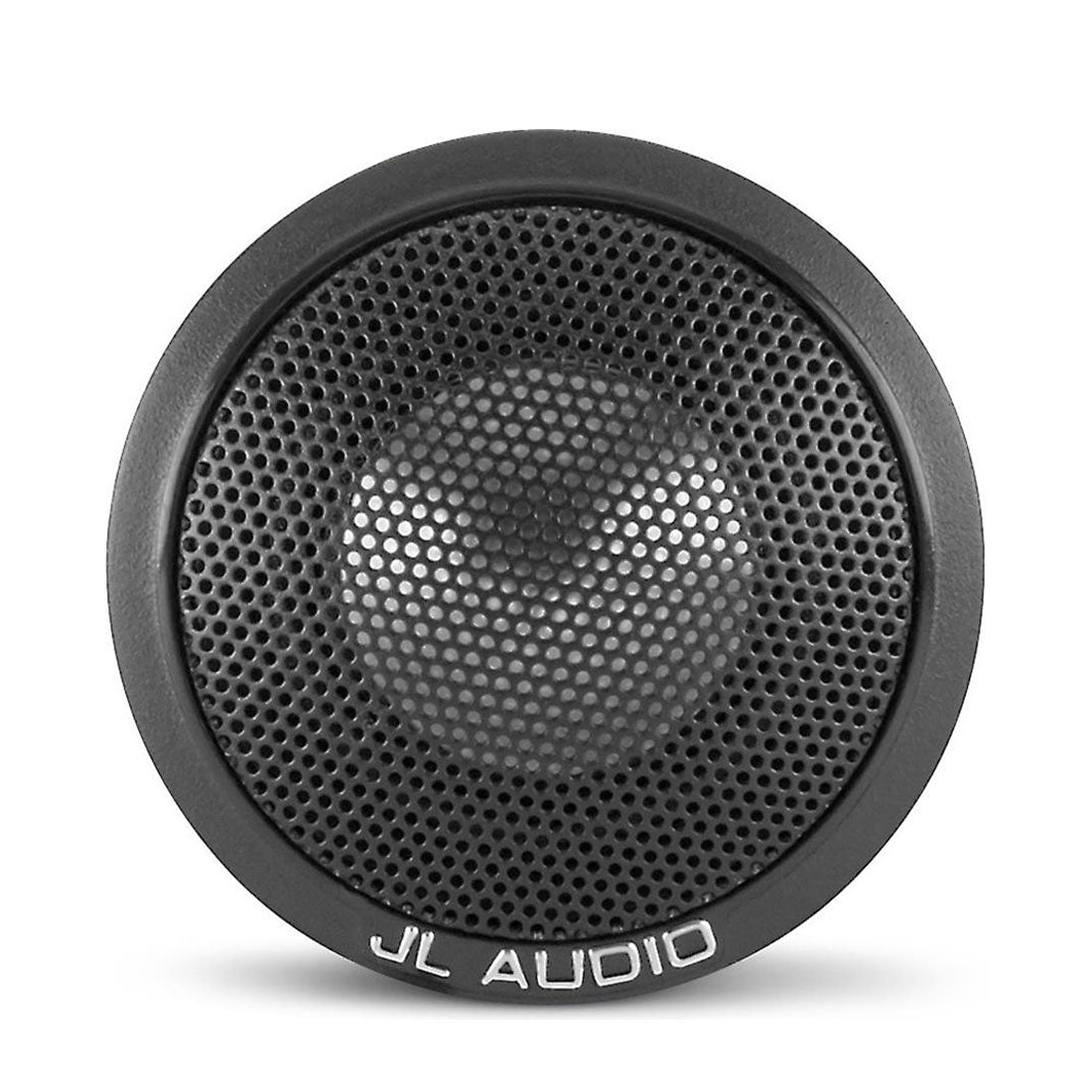

C1-100ct 1.0-inch (25 mm) Aluminum Dome Tweeters C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.

Starter speakers like no other

After an extensive tour of JL Audio HQ, I got the opportunity to talk to their engineering and development team about the current JL Audio lineup and upcoming projects. Given all the work they're doing with premium car audio, I was surprised by how excited they were for customers to hear their workhorse C1 Series — speakers designed for drivers simply looking for a sensible factory speaker replacement, not necessarily an audiophile-grade solution. The reason for that excitement, once I heard it, made perfect sense — every JL Audio speaker must uphold the quality and sound associated with the name. You may be looking for something that's just listenable, but what you'll get with the C1 Series is an audio experience that puts it at the top of its class. And then, just maybe, you'll end up being a JL Audio fan for life.

Take your highs to a new level

These C1 Series C1-100ct 1" aluminum dome tweeters stand apart from other component tweeters at this price. Their edge-driven design gives you a smooth response and minimizes distortion. You'll experience crisp detail in the high frequencies and incredible imaging that will make your factory tweeters hide in shame. Included in-line high-pass filters ensure that these tweeters receive the right frequencies, and JL Audio supplies flush- and surface-mount solutions for the perfect installation.

C1-100ct Physical Specifications

Flush Mount Fixture Diameter (A1)	1.97 in / 50 mm
Surface Mount Fixture Diameter (A2)	2.01 in / 51 mm
Flush Mount Mounting Hole Diameter (B)	1.75 in / 45 mm
Flush Mount Mounting Depth (C)	0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion (D1)	0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion (D2)	0.87 in / 22 mm

Features

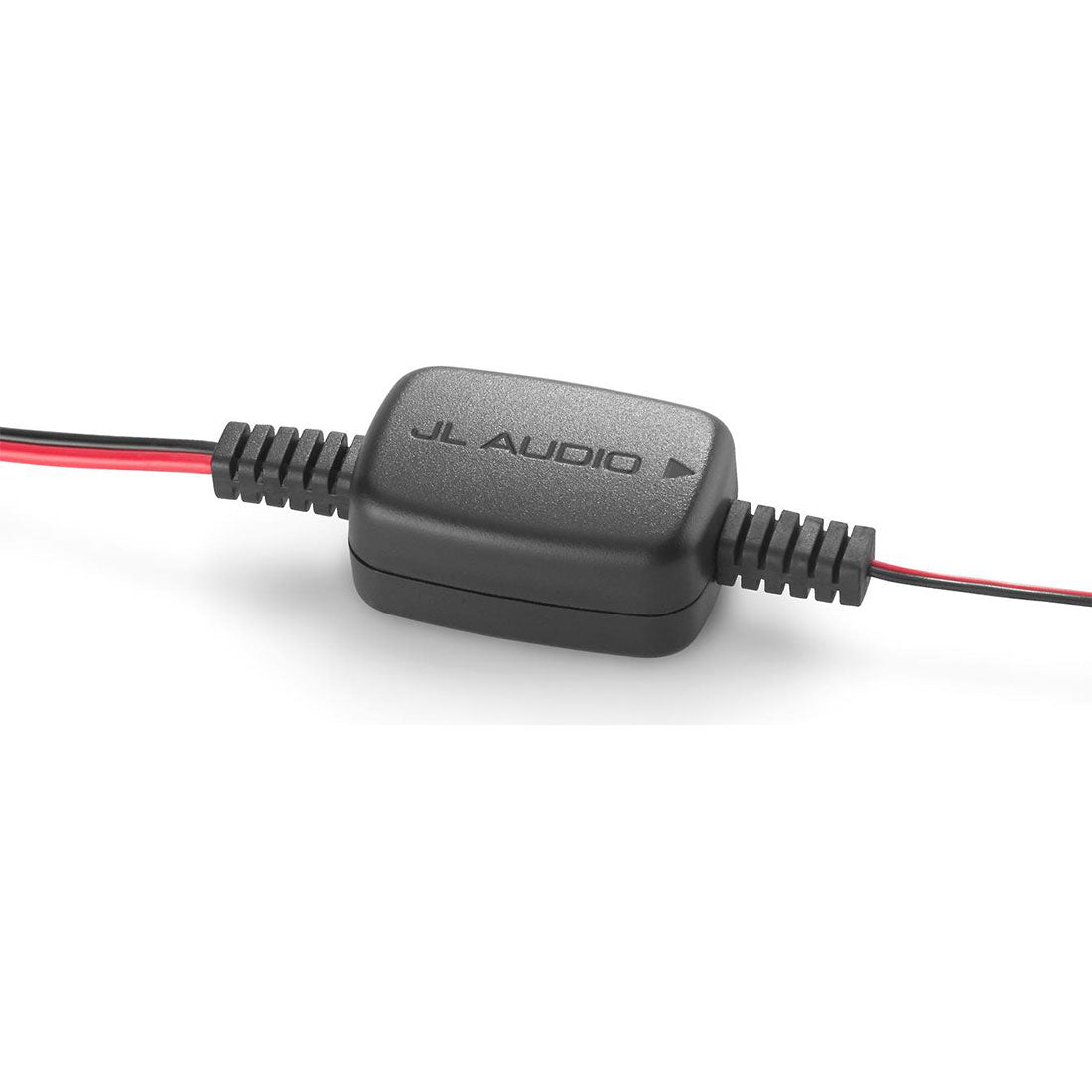

Tweeters: The 1" edge-driven, aluminum dome tweeters are damped by a silk surround suspension. Flush and surface tweeter mounting brackets are included. Tweeter Dimensions: Crossovers: The in-line tweeter crossovers are 2nd order (12 dB/octave slope) and the 30" input and 15" output wires are attached. The input wires are terminated with female quick slides and the output wires are terminated with male quick slides that plug into the terminals on the wires attached to the tweeters. The electronic tweeter protection circuit is designed to minimize the possibility of tweeter failure. It monitors current going to the tweeter and will disconnect the tweeter from the signal when it senses overload. Once the volume has been reduced, the protection circuit will reset itself automatically. Crossover Dimensions:

• Width: 2" (3" including wire)
• Height: 1"
• Depth: 1-3/8"
